2 years warranty 9-16V 55W Slim Canbus Ballast with CE/E-mark

* Solving canbus problem for 99% cars, highly support for 13-14 new cars.
 * Only 0.1% defect rate.
 * Safe HID canbus system - Never burn computer PC system.
* Super slim design style
* Life span: over 5000 hours.
  • SL-U10S-55W

  • OEM

  • 85041010

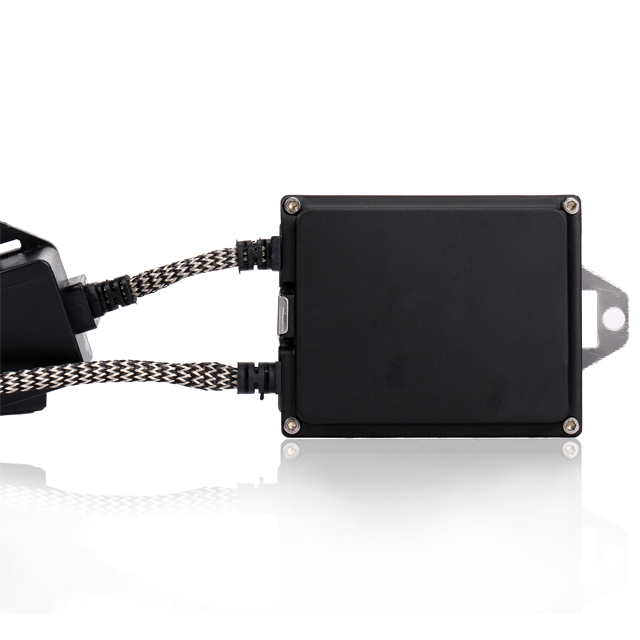

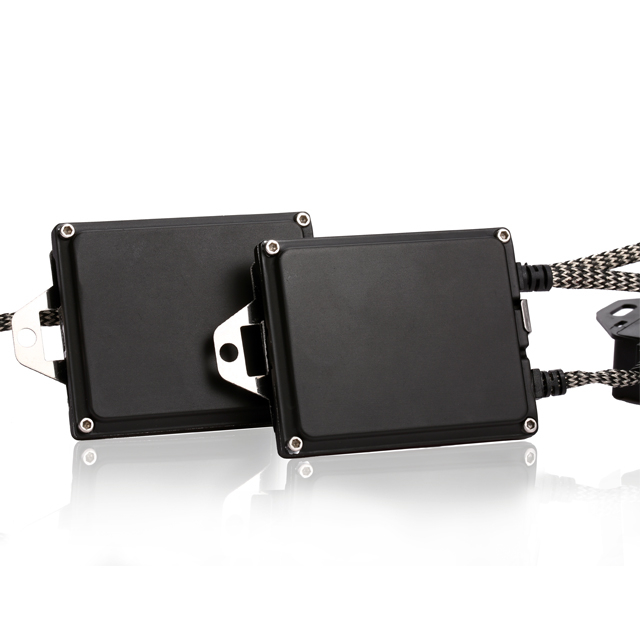

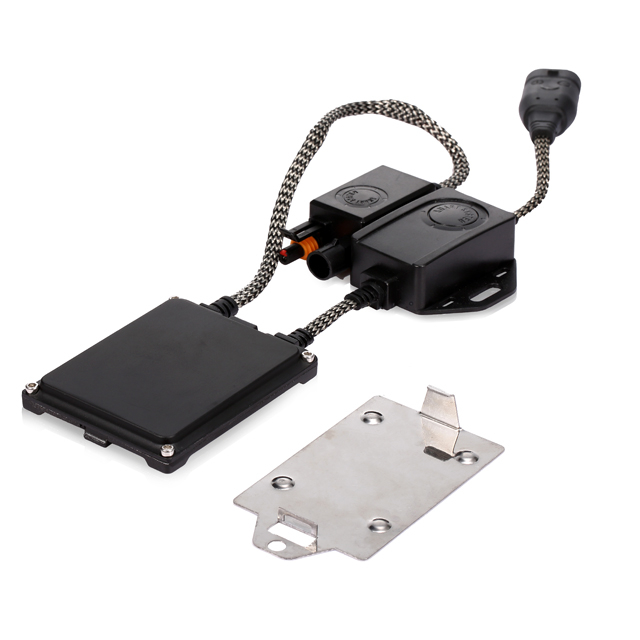

2 years warranty 9-16V canbus slim HID ballast

Model: SL-U10S-55W

Selling points:

* Solving canbus problem for 99% cars, highly support for 13-14 new cars.
* Only 0.1% defect rate.
* Safe HID canbus system - Never burn Audi Wipe Engines or computer PC system.
* Super slim design style.
* Life span: over 5000 hours.

Technical parameters:

Input Voltage: 9-16V
Rated Voltage: 13.2V
Max Start Voltage: 23KV
Peak Start Current:<6.5A
Rated Curren: 4.6A
Output Power: 55W±1W
Out put voltage: 85V±25V AC
Output voltage frequency: 250HZ
Efficiency: >82%(Stable)
Working Temperature: -40ºC-+105ºC
Open circuit protection: Automatic protection in 1s
Short circuit protection: Automatic protection in 3s

Type Canbus ballast
Input Voltage 9-16V
Rated Voltage 13.2V
Max Start Voltage 23KV
Peak Start Current<6.5A
Rated Curren  4.6A
Output Power 55W±1W
Out put voltage 85V±25V AC
Output voltage frequency 250HZ
Efficiency >82%(Stable)
Working Temperature -40ºC-+105ºC
Open circuit protection Automatic protection in 1s
Short circuit protection Automatic protection in 3s

Factory tests:


1. 5 hours continous working aging test .


2.connection circuit protection test.


3. Lack of voltage protection test.


4.Over voltage protection test.


5.Flash light concussion test.


6. Quankeproof capability test.


7. Cold & warm boot test.


8.Polarity protection protection test.


9.short circuit protection test.
