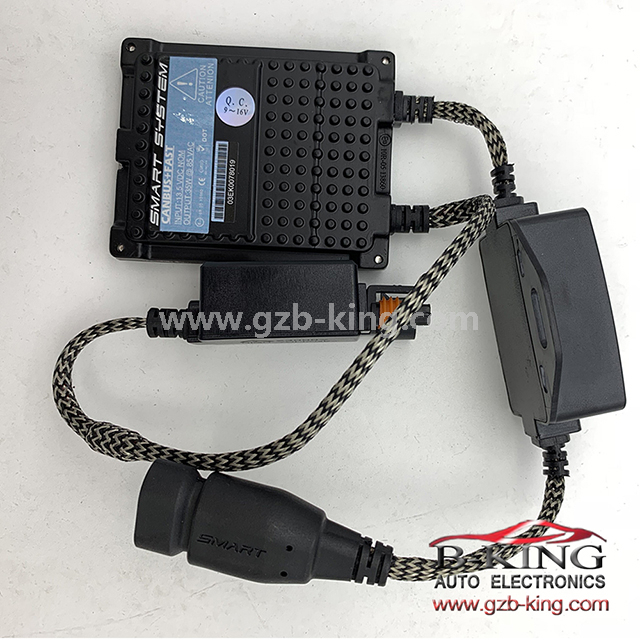

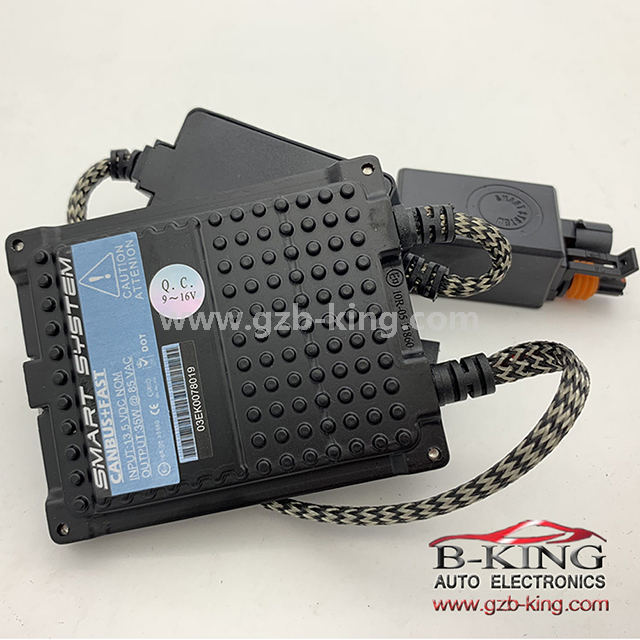

9-16V 35W Slim Canbus HID Ballast
Model: SL-U10S-35W
Selling points:
* Solving canbus problem for 99% cars, highly support for 13-14 new cars.
* Only 0.1% defect rate.
* Safe HID canbus system - Never burn Audi Wipe Engines or computer PC system.
* Super slim design style.
* Life span: over 5000 hours.
Technical parameters:
Input Voltage: 9-16V
Rated Voltage: 13.2V
Max Start Voltage: 23KV
Peak Start Current:<6.5A
Rated Curren: 3.2A
Output Power: 35W±1W
Out put voltage: 85V±25V AC
Output voltage frequency: 250HZ
Efficiency: >82%(Stable)
Working Temperature: -40ºC-+105ºC
Open circuit protection: Automatic protection in 1s
Short circuit protection: Automatic protection in 3s
Type | Canbus ballast |
Input Voltage | 9-16V |
Rated Voltage | 13.2V |
Max Start Voltage | 23KV |
Peak Start Current | <6.5A |
Rated Curren | 3.2A |
Output Power | 35W±1W |
Out put voltage | 85V±25V AC |
Output voltage frequency | 250HZ |
Efficiency | >82%(Stable) |
Working Temperature | -40ºC-+105ºC |
Open circuit protection | Automatic protection in 1s |
Short circuit protection | Automatic protection in 3s |
7. Cold & warm boot test.
9.short circuit protection test.
